How Accurate Are As-Built Drawings?

If you are asking how accurate are as-built drawings, the short answer is that good as-builts should be accurate enough to support design, planning, and many permit submittals—but they are not magic, and they are not all produced to the same standard. Accuracy depends on how the property is measured, what level of detail is included, and how clearly the final plans communicate existing conditions.

For California homeowners, architects, contractors, and real estate professionals, that distinction matters. A sketch made from old records or rough tape measurements is very different from a field-measured plan produced from on-site laser measurements and drafted by experienced CAD staff. FastAsBuilt measures properties on site, then senior drafters produce permit-ready CAD files in PDF and DWG formats, which helps reduce guesswork before design and construction begin.

What “accurate” means in as-built drawings

When people talk about as-built accuracy, they often mean slightly different things. Some want to know whether room sizes are exact. Others care more about whether wall locations, openings, stairs, ceiling changes, or exterior footprints are dependable enough for permit drawings and renovation planning.

In practice, accuracy usually means the drawings reasonably reflect the existing building as it stands on the day of measurement. That includes visible dimensions, layout relationships, and major built features that can be observed and measured in the field. It does not mean every surface is perfectly straight or every older building is perfectly square. In California, many homes and commercial spaces have settled, been remodeled, or contain field-built conditions that vary from older records.

A useful way to think about drawing tolerance is this: a strong as-built set should capture the building faithfully enough that your architect, designer, or contractor can make decisions with confidence. If a project demands a higher level of precision for a structural detail, fabrication package, or highly constrained addition, the team may need to verify critical dimensions again during later design phases.

Why no as-built drawing is “perfect”

Even the best measured plans reflect real buildings, and real buildings are messy. Walls bow. Corners drift out of square. Floor levels change slightly from room to room. Existing finishes can conceal framing, chases, and other concealed conditions. That is why no responsible provider should promise absolute perfection down to every hidden element.

Several factors can affect measurement accuracy and the final drawing tolerance:

• Access limitations, such as locked rooms, heavy storage, or blocked wall faces
• Concealed construction behind drywall, plaster, cabinetry, or finishes
• Older additions or remodels that do not match original geometry
• Exterior obstacles like vegetation, fencing, grade changes, or narrow side yards
• Human interpretation when converting field information into CAD drawings

This is not a sign of poor work. It is simply the reality of documenting existing conditions. The question is not whether any uncertainty exists; the question is whether the provider uses a solid process to minimize it. If you want a closer look at the workflow, see how as-built drawings are made.

How field measurement method affects accuracy

The method used in the field has a major effect on the reliability of the final plans. Rough hand sketches based on pacing, photos alone, or selective tape pulls usually leave too much room for error. A more dependable process combines systematic on-site measurement with clear field notes and disciplined drafting.

FastAsBuilt uses on-site laser measurement, then senior drafters convert that information into permit-ready CAD files. That matters because a laser-based workflow can capture room dimensions and spatial relationships more consistently than informal methods, especially in larger homes, multi-room remodels, and buildings with many offsets.

Measurement accuracy also depends on whether the crew measures logically across the entire property instead of collecting isolated dimensions. Good field practice includes checking relationships between rooms, confirming overall building extents, and resolving discrepancies before drafting. In other words, accuracy is not just about the tool. It is about the method.

If you are preparing for a visit, it helps to understand what happens during an as-built measurement so you know how the team documents the space and where precision comes from.

What level of tolerance should you expect?

There is no single universal drawing tolerance that applies to every as-built project, because project scope and end use vary. A homeowner planning a kitchen remodel may need dependable wall, window, and door locations. An architect designing an addition may care more about exterior footprint, roof relationships, and section information. A commercial tenant improvement may require a broader set of existing conditions to coordinate multiple disciplines.

For most practical purposes, you should expect as-builts to be accurate enough for planning, design development, and many permit workflows when they are professionally field-measured. You should not expect them to replace every later verification that may be needed for fabrication, structural engineering, or trades working around tight tolerances.

A good rule of thumb is to match the expected accuracy to the decisions you need to make:

• Early planning: layout, room sizes, and existing openings usually matter most
• Permit preparation: complete existing conditions, wall locations, elevations, and sections may be needed
• Construction coordination: certain dimensions may need reconfirmation in the field before ordering materials or building custom elements

That is why experienced teams clearly define deliverables at the start. If you need only 2D existing floor plans, the scope is different from a full 3D package with elevations and sections. FastAsBuilt’s 2D As-Built Plans start at $900 for up to 1,500 square feet, then $0.50 per square foot, with one revision and typical 48–72 hour delivery. 3D As-Built Plans start at $1,500, then $1.00 per square foot, and include a 3D model plus 2D floor plans, elevations, and sections, with two revisions and typical 3–5 business day delivery.

Turnaround times are estimates and may vary based on project complexity and scheduling.

Where inaccuracies usually show up

When people ask how accurate are as-built drawings, they often imagine a single number. In reality, the biggest risks are usually specific conditions rather than the whole plan. Certain areas are more likely to create uncertainty than others.

Out-of-square rooms

Many existing rooms are not perfectly rectangular, especially in older California housing stock or spaces altered over time. A drawing may show the room correctly, but if someone assumes every corner is exactly 90 degrees during construction, problems can still arise.

Concealed elements

As-builts generally document what can be seen and measured. They do not automatically reveal hidden beams, plumbing reroutes, framing irregularities, or abandoned openings behind finished surfaces.

Thick finishes and built-ins

Cabinetry, wall paneling, tile build-up, and layered finishes can make it harder to infer underlying structure. This matters when a remodel depends on exact rough opening or framing dimensions.

Exterior conditions

Site slope, fences, plant growth, and limited side-yard access can affect how easily an exterior is measured. For additions and ADUs, exterior geometry becomes especially important.

These are normal issues, not exceptions. The value of a professional as-built is that it identifies and reduces uncertainty before it becomes expensive. If your project is permit-related, it may also help to review as-built drawings for building permit.

How to improve as-built accuracy before the site visit

You can help the final plans come out cleaner and more reliable. The field crew can only measure what they can access, see, and document. A little preparation makes a meaningful difference, especially in occupied homes, retail spaces, and buildings with storage along walls.

Before the appointment, try to:

• Unlock all rooms, garages, yards, gates, and accessory spaces
• Clear access to perimeter walls, windows, and major built features
• Move large items that block corners, doors, or stair landings when possible
• Share any prior plans, if you have them, even if they may be outdated
• Tell the provider what the plans will be used for, such as remodel design, permit, ADU, or tenant improvement

Prior drawings do not replace field measurement, but they can help flag scope questions and areas to double-check. The more clearly the intended use is communicated, the easier it is to align the drawing package with your needs. For more practical guidance, see how to prepare for your as-built site visit.

2D vs. 3D: does one option improve accuracy?

Not automatically. Accuracy comes from the quality of the field capture and drafting process first. However, the type of deliverable does affect how much building information is documented and how easily others can understand it later.

2D as-built plans are often the right fit when you need a measured floor plan of the existing layout. They can be efficient for interior remodel planning, real estate documentation, and many early design tasks. Because the package is focused, it can be enough for many straightforward projects.

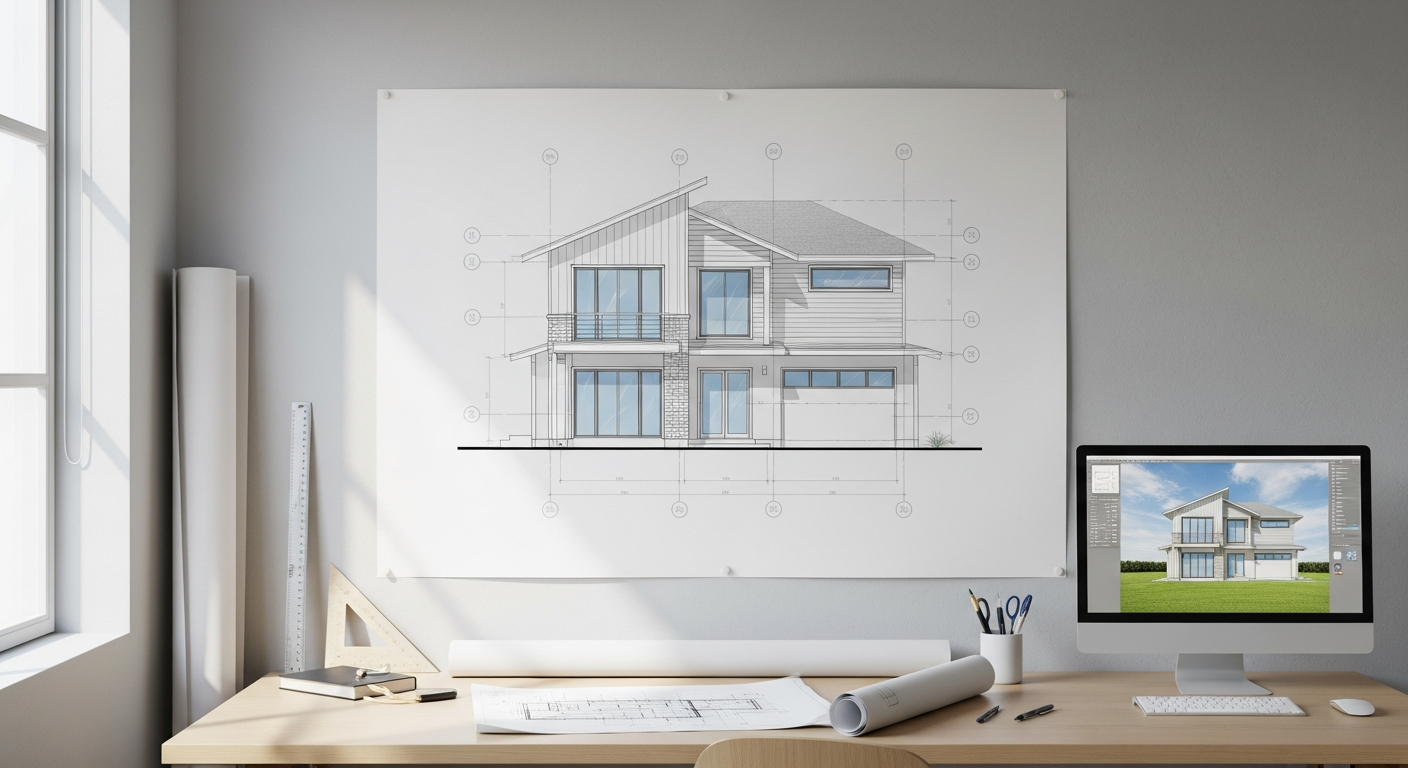

3D as-built plans are more comprehensive. FastAsBuilt’s 3D package includes a 3D model along with 2D floor plans, elevations, and sections. That added information can reduce interpretation errors on projects where vertical relationships matter, such as sloped ceilings, split levels, stair coordination, facade work, and more complex renovations.

So the better question is not “Which one is more accurate?” but “Which one records the level of detail your project requires?” If your project depends on understanding both plan layout and vertical conditions, 3D documentation may provide more useful clarity.

How accuracy relates to permits, remodels, and California project types

Different California project types place different demands on existing-condition drawings. A simple interior update may only require dependable plan dimensions and existing openings. An ADU conversion, SB9 project, or commercial tenant improvement may call for more extensive documentation of the current building configuration.

For permit work, reviewers and design teams generally need drawings that present existing conditions clearly and consistently. That does not mean the plans must predict every hidden condition inside walls. It means they should provide a trustworthy base for the next design steps and reduce conflicts later in the process.

That is one reason many property owners prefer a provider that focuses on measured as-builts rather than generic drafting alone. FastAsBuilt serves Southern California, the Bay Area, and San Diego with local crews, which helps when timing, access, and regional project needs matter. If you already know what you need, you can start through the order page.

Frequently asked questions

Are as-built drawings accurate enough for a permit application?

They often are, especially when they are professionally field-measured and drafted for permit use. The exact requirements depend on your project and jurisdiction. As-builts usually provide the existing-condition base, while design professionals may add proposed work and verify critical items as the permit set develops.

Can as-built drawings be wrong?

Yes, like any documentation, they can contain errors if the field work is incomplete, the drafting is rushed, or access is limited. That is why process matters so much. A careful site visit, laser measurement, clear scope, and review of the final plans all help improve reliability.

Do older houses have lower as-built accuracy?

Not necessarily lower overall accuracy, but they often present more irregular conditions. Older homes may be out of square, have layered remodels, or include concealed changes that are not obvious during measurement. The plans can still be very useful, but your team should expect some real-world irregularity.

Should contractors still verify dimensions on site?

Yes. Even with good as-builts, contractors should verify dimensions that are critical to installation, fabrication, and fit. That is standard good practice. As-builts reduce uncertainty and save time, but they do not eliminate the need for field verification where precision is essential.

Bottom line

How accurate are as-built drawings? Accurate enough to be extremely useful when they are professionally field-measured, carefully drafted, and matched to the needs of the project. The key is to expect reliable existing-condition documentation—not an impossible promise of perfection in every hidden or irregular detail. With on-site laser measurement, senior drafters, and permit-ready PDF and DWG deliverables, FastAsBuilt provides a strong foundation for California remodels, permits, ADUs, and commercial projects.
