The As-Built Drawing Process, Step by Step

If you need accurate plans for an existing building, it helps to know the as-built process step by step before you book the job. Whether you are planning a remodel, preparing a permit package, documenting a recent purchase, or scoping an ADU or tenant improvement, the process is straightforward when you understand what happens at each stage.

At FastAsBuilt, we provide field-measured as-built drawings and measured floor plans across California. Our local crews serve Southern California, the Bay Area, and San Diego, using on-site laser measurement to capture existing conditions. After the site visit, senior drafters turn that field data into permit-ready CAD files delivered in PDF and DWG format. This guide walks through how it works, what you need to provide, and what to expect from start to finish.

1. Start with the right scope

The first step in the as-built process is deciding what you actually need documented. Some projects only need a clean 2D floor plan of the existing layout. Others need a more complete package that includes elevations, sections, and a 3D model to support design, planning, or coordination.

In practical terms, your scope usually depends on the next decision you are trying to make. If you are confirming room sizes, wall locations, doors, windows, and general layout, 2D plans may be enough. If your architect, designer, or contractor needs more context for a larger remodel or a more detailed study, a 3D package can be the better fit.

• 2D As-Built Plans: starting at $900 for up to 1,500 square feet, then $0.50 per square foot; includes 1 revision; typical delivery is 48–72 hours. Turnaround times are estimates and may vary based on project complexity and scheduling.
• 3D As-Built Plans: starting at $1,500, then $1.00 per square foot; includes a 3D model plus 2D floor plans, elevations, and sections; includes 2 revisions; typical delivery is 3–5 business days. Turnaround times are estimates and may vary based on project complexity and scheduling.
• Custom projects: commercial spaces, ADUs, SB9 projects, and tenant improvements are quoted individually.

If you are still comparing options, it can help to review what is included in as-built drawings before ordering.

2. Place the order and share project details

Once you know the general scope, the next step is ordering and providing the basic information needed to schedule the job correctly. This is where a smooth process guide matters. The more clearly the property and goals are described at the start, the easier it is to assign the right crew, estimate timing, and prepare the drafting team for what comes next.

Most clients place an order because they need plans quickly and do not want to piece together old records that may be incomplete or outdated. Existing municipal files, prior listings, and old construction sets can be useful reference material, but the as-built steps still begin with a fresh field measurement of current conditions.

Helpful information to provide includes:

• Property address and location
• Approximate square footage
• Building type, such as house, condo, retail, office, or mixed-use
• Your intended use for the plans, such as remodel design or permit application
• Any known additions, conversions, or unusual areas that should be measured
• Access instructions, tenant coordination needs, gate codes, or parking notes

If you want a simple checklist, see what information you need to provide for as-builts. When you are ready, you can place your request through the order page and move to scheduling.

3. Schedule the site visit and prepare the property

After the order is received, the next step is scheduling the on-site measurement. Because FastAsBuilt has local crews in Los Angeles, Orange County, the Inland Empire, the Bay Area, and San Diego, scheduling is handled with California service coverage in mind rather than through a distant dispatch model.

This stage is often overlooked, but it affects how efficient the measurement will be. The site visit goes faster when all spaces are accessible and the team can move through the property without delays. That means unlocking side yards, garages, accessory spaces, and utility rooms if they are part of the scope.

Before the appointment, it is smart to:

• Confirm who will provide access
• Make sure pets are secured
• Clear enough space to reach walls, doors, and windows
• Open detached structures or storage areas that need to be included
• Let occupants know a measurement team will be on site

If you want more detail on preparation, read how to prepare for your as-built site visit. Good preparation does not change the building, but it can reduce interruptions and help the field crew capture all required areas in one visit.

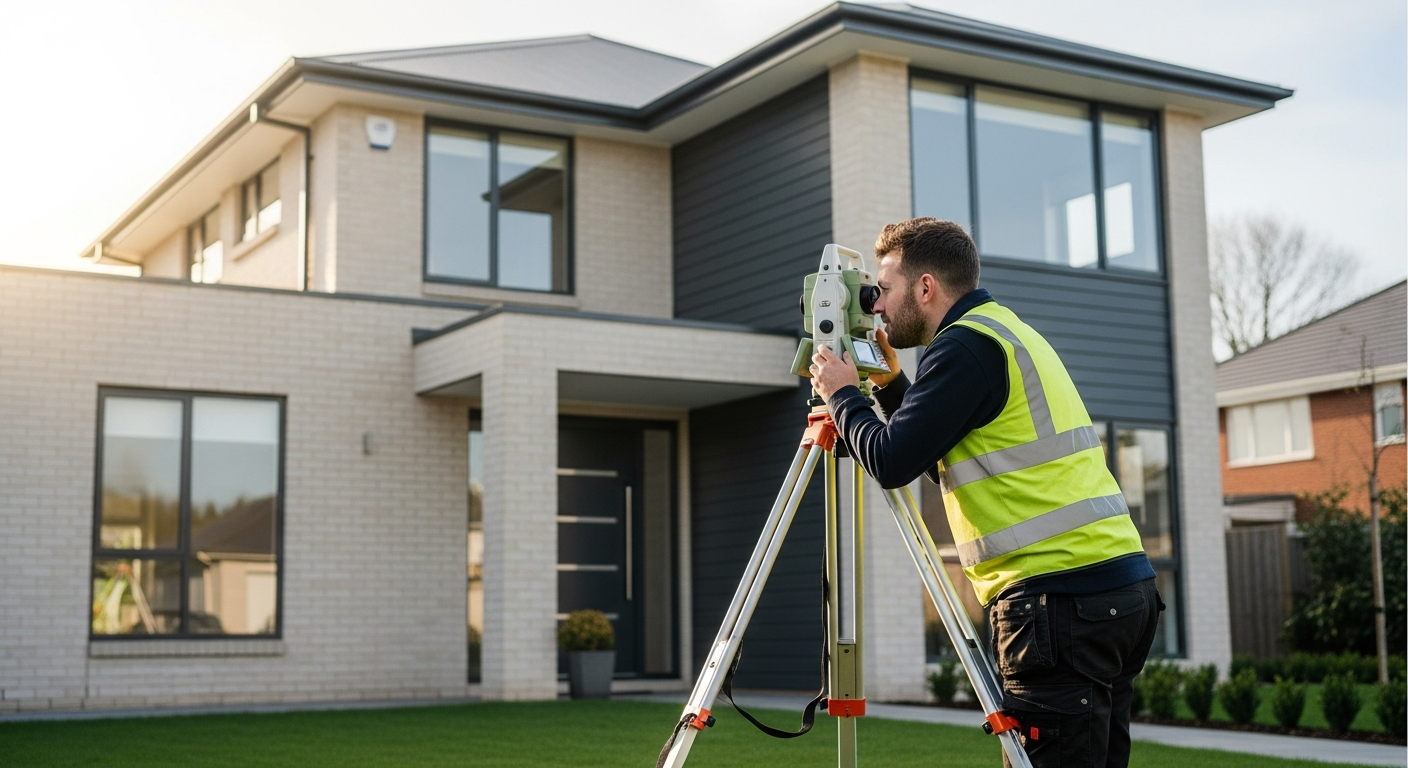

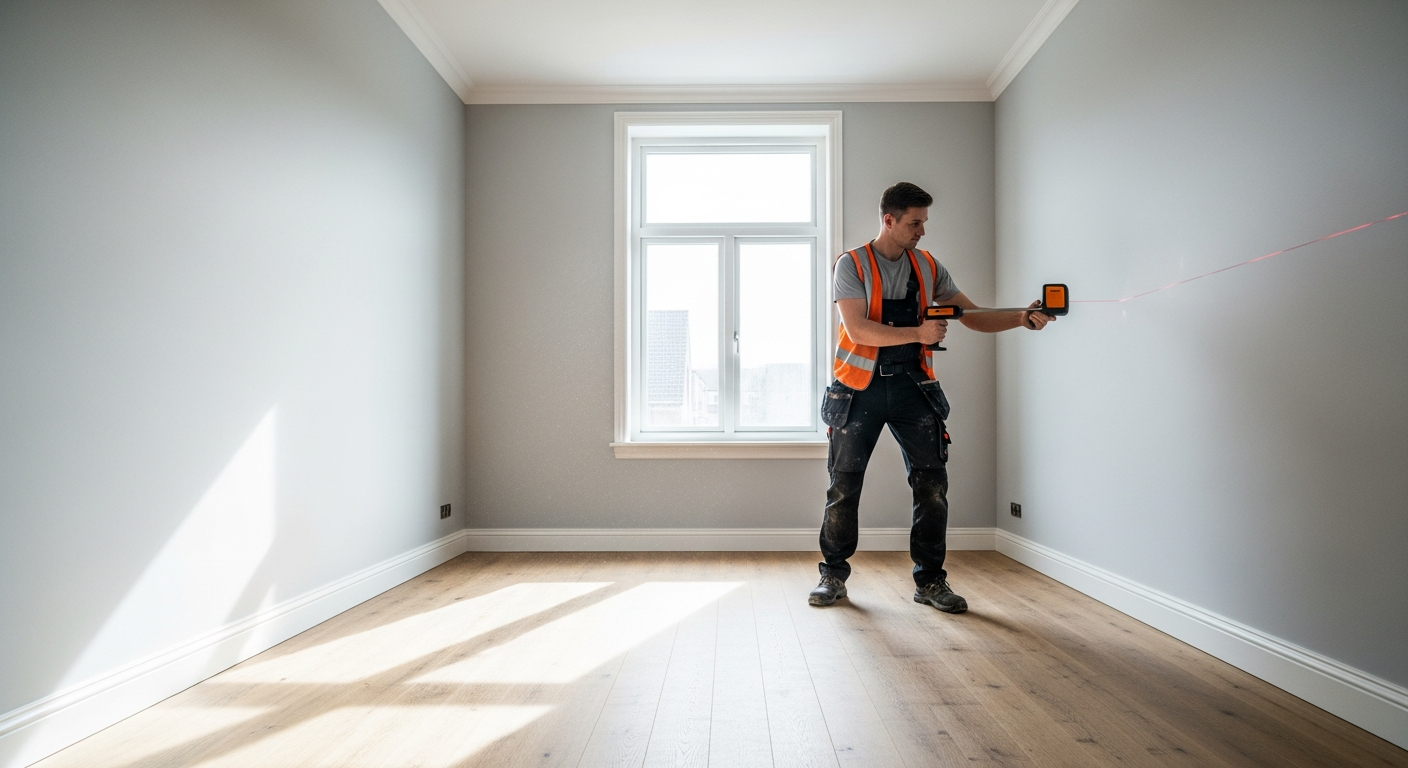

4. Field technicians measure existing conditions on site

This is the core of the as-built process step by step: the actual field measurement. FastAsBuilt uses on-site laser measurement to record the existing building as it stands on the day of the visit. That matters because the purpose of an as-built is to document current conditions, not assumed conditions or what old plans say should be there.

During the site visit, the crew works through the property methodically. They capture room dimensions, wall locations, door and window placement, circulation paths, and other visible features needed to draft the plans accurately. For more detailed scopes, the fieldwork also supports elevations, sections, and 3D modeling.

What happens on site usually includes:

• Measuring interior spaces room by room
• Capturing overall building dimensions
• Noting openings such as doors and windows
• Recording stairs, major changes in level, and other key geometry
• Documenting visible conditions relevant to the drawing package

The exact time required depends on property size, complexity, and access. A straightforward single-family house moves differently than a multi-tenant commercial suite or a property with additions and irregular geometry. If you want more background, see what happens during an as-built measurement and how long an as-built measurement takes.

5. Senior drafters turn field data into CAD drawings

After measurement, the project shifts from the field to drafting. This is where raw dimensions become a usable drawing set. FastAsBuilt’s senior drafters process the site data and produce permit-ready CAD files in PDF and DWG format.

This step is more than tracing lines. A good drafting workflow organizes the measured information into clear, readable plans that design professionals, property owners, and city reviewers can actually use. The goal is not just to show dimensions, but to present existing conditions in a format that supports the next phase of the project.

What is produced in drafting?

For a 2D package, the main deliverable is a measured floor plan set based on the site visit. For a 3D package, the drafting phase also includes a 3D model along with 2D floor plans, elevations, and sections. The scope determines the output, but in both cases the plans are built from field measurement rather than guesswork.

If you are new to the topic, you may also want to review how as-built drawings are made for a broader overview of the workflow from measurement to final files.

6. Internal quality review checks clarity and completeness

One of the most important as-built steps happens after drafting and before delivery: quality review. A useful as-built set needs to be coherent, legible, and aligned with the original field data. That is especially important when the plans will be handed off to an architect, contractor, engineer, or permit expeditor.

Quality review typically focuses on whether the drawings are complete for the ordered scope and whether they read clearly as a set. This is where inconsistencies, missing tags, or formatting issues can be caught before the files reach you.

Clients often ask about accuracy at this stage. The short answer is that accurate results come from the combination of on-site laser measurement and experienced drafting. If you want a deeper explanation, see how accurate as-built drawings are. Clear field access and complete scope information also improve the final result.

7. Delivery includes PDF and DWG files

Once drafting and review are complete, the final files are delivered. FastAsBuilt provides permit-ready CAD files in both PDF and DWG format, which gives you a practical package for sharing, reviewing, and building on.

The delivery timeline depends on the scope you selected:

• 2D As-Built Plans: typical delivery in 48–72 hours Turnaround times are estimates and may vary based on project complexity and scheduling.
• 3D As-Built Plans: typical delivery in 3–5 business days Turnaround times are estimates and may vary based on project complexity and scheduling.

These files are commonly used as the base layer for remodel design, permit plan preparation, due diligence, layout verification, and planning work on existing buildings. If your project team needs editable CAD, the DWG files make that handoff much easier than working from image-based or outdated plans.

For many California property owners, this is the point where the project shifts from discovery to action. Once you have measured existing conditions in a usable format, designers and contractors can move faster and make fewer assumptions.

8. Revisions address small updates after review

After delivery, you may review the plans yourself or send them to your architect, designer, or contractor. Sometimes that review raises a small clarification or correction. That is why revisions are built into the standard packages.

• 2D As-Built Plans: 1 revision included
• 3D As-Built Plans: 2 revisions included

In practice, revisions are most useful for resolving minor issues discovered during plan review rather than changing the scope entirely. For example, a team member may ask for a labeling adjustment, a clarification about a measured area, or a correction tied to the original field scope. If the requested change involves new areas or a larger expansion of scope, that is typically handled as an added service rather than a standard revision.

This step is one reason the as-built process guide matters. When everyone understands the original scope from the beginning, revisions stay focused and the full project keeps moving.

Frequently asked questions

Do I need old plans before ordering as-builts?

No. Old plans can be helpful as reference material, but they are not required. The process is based on a fresh on-site laser measurement of existing conditions, which is often more reliable than relying on older documents alone.

Are as-built drawings the same as permit plans?

Not exactly. As-built drawings document the building as it currently exists. They are often used as the foundation for permit plans, but the permit set itself may include additional design, engineering, or code-related information added by your project team.

What if my property has an ADU, garage conversion, or other added space?

That is common in California, and it is important to mention it when ordering. Added spaces, detached structures, and converted areas should be included in the scope so the field crew can measure everything that matters to your project. ADUs, SB9 projects, and similar jobs are often quoted individually as custom work.

How do I know whether I need 2D or 3D as-builts?

If you mainly need an accurate measured layout, 2D plans are often enough. If your project requires a fuller picture of the building, including elevations, sections, and a model for design coordination, a 3D package is usually the better choice. The right option depends on how the plans will be used after delivery.

Bottom line

The as-built process step by step is simple when it is handled by a team with a clear workflow: define the scope, schedule the visit, measure the property on site, draft the plans from field data, review for quality, deliver permit-ready PDF and DWG files, and make any included revisions needed to finalize the set. For property owners, designers, and contractors across California, that process turns an existing building into a reliable starting point for the work ahead.
