What Is a Space Plan?

In commercial real estate and tenant improvement work, a space plan is a scaled drawing that shows how a commercial suite or building area can be arranged for actual use. If you hear brokers, architects, contractors, or landlords use the phrase space plan commercial, they are usually talking about a layout that places rooms, walls, doors, circulation paths, furniture zones, and sometimes code-related elements into an existing footprint so everyone can evaluate what fits.

That sounds simple, but the term often gets mixed up with other CRE terms such as test fit, floor plan, lease exhibit, and as-built drawings. In practice, a space plan helps answer practical questions early: How many offices fit? Where can reception go? Can the suite support a conference room, break area, or exam rooms? Is there a reasonable path of travel? And will the concept likely align with the applicable commercial building code and local review standards? In California, those questions are best answered with accurate base drawings and confirmation from the local jurisdiction before design or permit decisions move forward.

What a space plan means in commercial real estate

A space plan is a proposed arrangement of space within a commercial unit, floor, or building. It is usually drawn to scale and built on top of an existing measured footprint. The plan may be simple or detailed depending on the stage of the project, but its core purpose is the same: to show how the available area can function for a particular tenant or use.

In a leasing context, a space plan often helps a landlord or broker market a vacancy by showing one or more possible layouts. In a tenant improvement context, it helps the incoming tenant and design team evaluate whether the space can support the planned operations before moving deeper into architecture, engineering, and permitting.

• For an office, it may show private offices, open workstations, conference rooms, storage, and break space.
• For retail, it may show sales floor, fitting rooms, stock room, cashier zone, and back-of-house support.
• For medical or wellness uses, it may show reception, waiting, treatment rooms, utility areas, and staff support.
• For restaurant or food uses, it may show dining, queueing, kitchen, storage, and service circulation.

A good space plan commercial drawing is not just about fitting objects into a box. It also starts the conversation about efficiency, visitor experience, staff workflow, accessibility, and whether the concept is realistic within the existing shell.

What is usually shown on a commercial space plan

The content of a space plan depends on who is using it and why. Some are quick marketing diagrams. Others are more developed planning tools prepared before construction drawings. Either way, most space plans include a predictable set of graphic information.

• Exterior and interior walls within the existing suite footprint
• Doors, major openings, and basic circulation routes
• Room names or labels for proposed functions
• Furniture or equipment blocks at a planning level
• Approximate dimensions or planning modules
• Reception, waiting, work, storage, and support areas
• Restroom locations if relevant to the suite layout
• Notes about assumptions, existing conditions, or alternates

More developed versions may also show exit paths, accessibility clearances, occupancy assumptions, demising walls, plumbing fixture needs, or preliminary code notes. That does not make the plan a permit set by itself. It just means the drawing is doing more work as the project advances.

If the starting point is inaccurate, the entire planning exercise can drift off course. That is why many teams begin with as-built drawings or updated measured plans before they rely on any space planning decision.

How a space plan differs from as-built drawings

This is one of the most important distinctions. As-built drawings document existing conditions. A space plan proposes future use within those conditions. They are related, but they are not the same thing.

As-built drawings are field-measured representations of what is actually there. For commercial properties, they commonly show the current floor plan, wall locations, openings, dimensions, and sometimes elevations or sections depending on scope. FastAsBuilt produces these drawings by sending local California crews to perform on-site laser measurement, then having senior drafters prepare permit-ready CAD files delivered in PDF and DWG formats.

A space plan uses that measured base to explore potential layouts. If the as-builts are wrong, the space plan may place walls where they cannot go, assume dimensions that do not exist, or overlook constraints such as structural elements, shaft locations, or awkward circulation points.

• As-built drawing = what exists now
• Space plan = how the space could be arranged
• Permit drawing set = the technical documents submitted for review and construction

For many California projects, especially tenant improvements, a measured existing plan is the missing piece that makes the rest of the process more dependable. If you are sorting out current conditions for a suite, this overview of as-built drawings for commercial buildings helps clarify where they fit.

How a space plan differs from a test fit and a lease exhibit

Commercial teams sometimes use these terms loosely, but they serve different purposes.

Test fit

A test fit is usually an early feasibility exercise. It asks whether a target program can fit into a candidate space at a high level. A test fit may be fast, schematic, and comparative. A broker might use it to help a tenant evaluate several suites. An owner might use it to market a vacancy to a target user category.

Space plan

A space plan is often a broader or more refined layout drawing that develops one likely arrangement within a selected space. It may grow out of a test fit and carry more functional detail, especially once a tenant is getting serious about a location.

Lease exhibit

A lease exhibit is typically a diagram attached to a lease that identifies the leased premises. It may show boundaries and basic area context, but it is not necessarily a detailed planning document. Some lease exhibits are very simple and should not be treated as design-ready drawings.

For landlords and tenants, this difference matters. A lease exhibit can support a legal description of premises, while a space plan supports design and use discussions. If you are evaluating existing suites before a lease or build-out decision, these articles on commercial lease due diligence and office build-out planning can help.

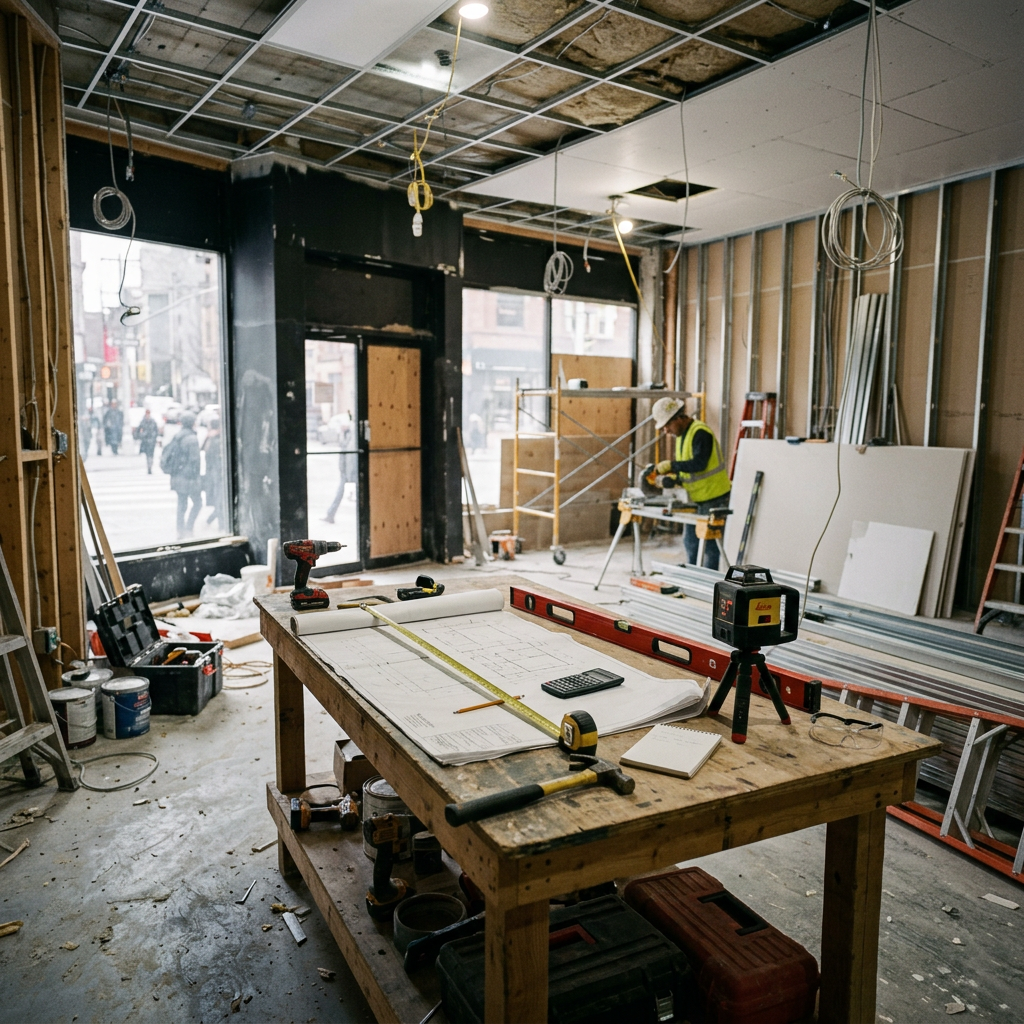

Why accurate existing measurements matter before space planning

Many commercial planning problems start with a bad base file. An old PDF from a prior tenant, a marketing flyer, or a landlord plan with unknown origin may be enough for a rough conversation, but not enough for reliable space planning. Even small dimension errors can affect office counts, corridor widths, furniture layouts, accessible clearances, or whether a back-of-house function fits at all.

In California, measured drawings are especially valuable because many commercial spaces have gone through years of undocumented changes. Suites may contain non-original partitions, relocated doors, infill work, old utility chases, and partial renovations that are not reflected in archived plans. A measured base helps reveal what is actually present before you spend time on programming or design iterations.

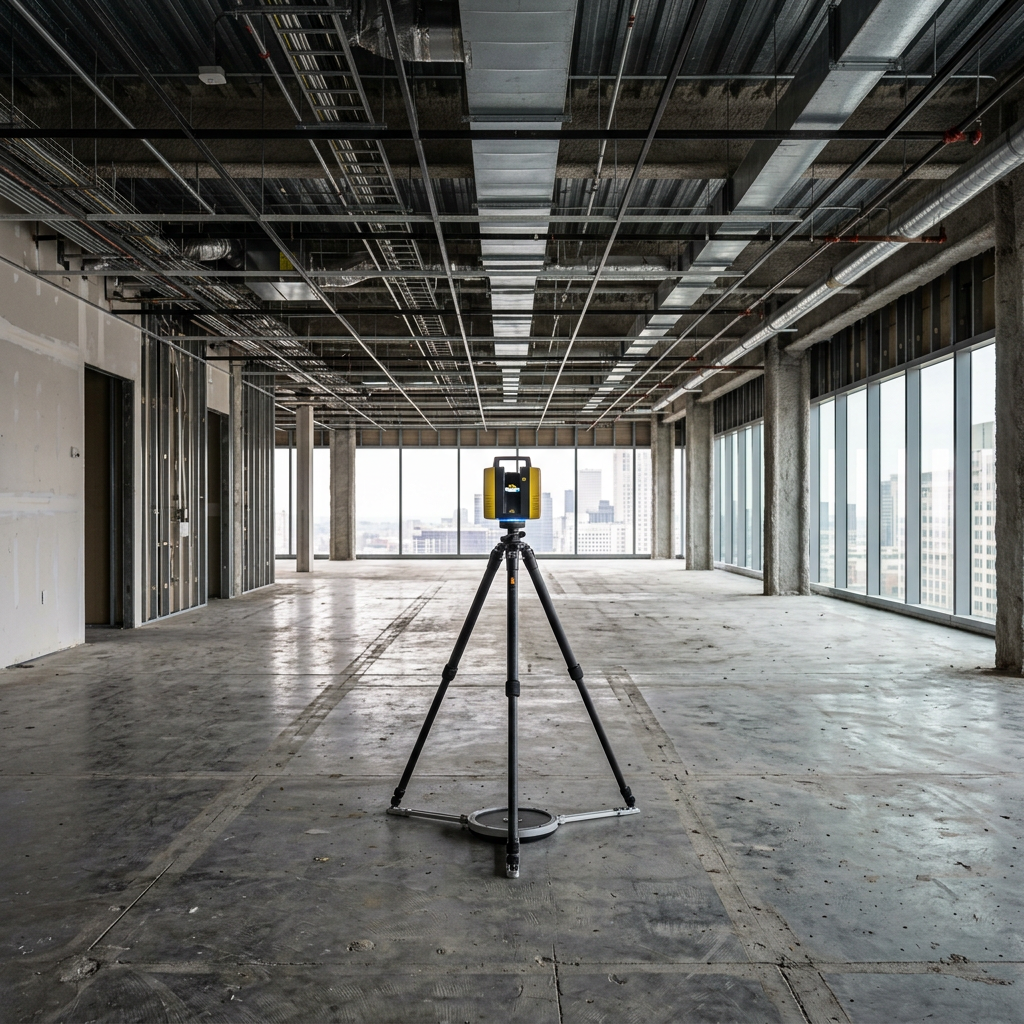

FastAsBuilt handles this by sending local crews across Southern California, the Bay Area, and San Diego to capture on-site laser measurements. Senior drafters then prepare permit-ready CAD files in PDF and DWG. For straightforward existing conditions documentation, 2D As-Built Plans start at $900 for up to 1,500 square feet, then $0.50 per square foot, include 1 revision, and typically deliver in 48 to 72 hours. For more advanced visualization and coordination, 3D As-Built Plans start at $1,500, then $1.00 per square foot, include a 3D model plus 2D floor plans, elevations and sections, 2 revisions, and typically deliver in 3 to 5 business days.

Turnaround times are estimates and may vary based on project complexity and scheduling.

Custom commercial scopes such as tenant improvements, ADUs, SB9-related work, and specialized commercial projects are quoted individually. If you already know you need measured existing conditions, you can review options or start at our packages page.

Where a space plan fits in the tenant improvement process

For many TI projects, the space plan sits between early feasibility and full construction documentation. It is a decision-making tool. It helps the team agree on direction before the architect and engineers invest time in a full permit set.

A typical sequence looks like this:

• Confirm existing conditions with measured plans or verified base drawings
• Define the tenant program, headcount, equipment, and operational needs
• Prepare one or more space plan options
• Review efficiency, user flow, branding, and likely code impacts
• Select a preferred direction
• Develop permit and construction drawings based on the approved concept

This is also where many practical concerns come into focus. A law office may realize it needs more enclosed acoustic rooms. A retailer may discover the stock area is too small. A salon may need better adjacencies for plumbing-intensive functions. A warehouse office insert may reduce operational floor area more than expected. The point of the space plan is not perfection. The point is to identify these issues before the project becomes expensive to change.

If your project is moving toward permit drawings, you may also want to read about as-builts for a commercial TI, because measured existing conditions often become the foundation for the design team’s work.

How space plans relate to commercial building code review

A space plan is not the final word on code compliance, but it is often the first place code questions become visible. In a commercial setting, layout decisions can affect occupancy assumptions, exiting strategy, accessibility, fixture counts, fire and life safety considerations, and the scope of tenant improvements.

That is why the phrase commercial building code matters even at the planning stage. A concept that looks efficient on paper may run into issues once local requirements are applied. For example, room arrangement can influence travel paths and egress logic. Proposed use can affect occupancy classification. Plumbing-intensive layouts may trigger coordination questions. Accessibility clearances can change how tightly rooms can be packed.

In California, code review also happens locally. Statewide rules matter, but each city or county may have its own permit procedures, interpretations, submittal requirements, and expectations for tenant improvements. You should confirm project-specific requirements with the local building department and your licensed design professionals before relying on a space plan as an approval document.

In other words, a space plan is a planning tool, not a substitute for permit review. It helps your team ask better questions earlier, which is often the best way to avoid major revisions later.

Common uses for space plans by property type

The same basic idea applies across asset types, but the planning priorities vary by use. That is why space planning should reflect the real operational needs of the tenant rather than just maximizing room count.

Office

Office space plans often focus on headcount, hybrid work patterns, meeting rooms, privacy, and support zones. A plan may compare more private offices versus more open workstations, or show how reception and client-facing rooms should relate to staff areas.

Retail

Retail planning typically balances customer flow, product display, point-of-sale placement, storage, and staff support. Sightlines and circulation matter as much as square footage efficiency. For store-specific context, see as-builts for retail spaces.

Medical and wellness

Medical offices, salons, spas, and fitness concepts often need tighter functional relationships between reception, treatment, utility, and staff areas. In these uses, even early planning can benefit from accurate dimensions because room sizes and service layouts can be more constrained.

Restaurant and food service

Restaurant space plans usually test seating count, queueing, kitchen adjacencies, storage, and customer-to-staff flow. Existing shell conditions can strongly affect feasibility. This is one reason restaurant teams often need dependable measured plans before design decisions begin.

Industrial and warehouse support space

For warehouse or light industrial properties, the “space plan” may focus on office insertions, restrooms, break areas, or support rooms within a larger operational floor. Even small inserts can affect circulation and use patterns significantly.

What a strong commercial space plan should answer

A useful space plan does more than show where rooms go. It should help you evaluate whether the concept works in everyday terms. Before moving forward, the team should be able to answer several practical questions.

• Does the suite support the target program without forcing awkward circulation?
• Are public and private areas arranged logically?
• Can the plan likely support accessibility and life-safety requirements once developed further?
• Do room sizes appear realistic for the intended use?
• Are storage, support, and back-of-house needs accounted for?
• Will the concept likely require major plumbing, electrical, or mechanical changes?
• Does the layout make sense for staff workflow and customer experience?
• Is the proposed arrangement worth the TI cost for this location?

If a space plan cannot answer these questions, it may be too vague to support a real decision. That does not mean every plan must be highly detailed. It means the level of detail should match the decision you need to make.

Common mistakes people make with space plans

One common mistake is treating an old plan as accurate without field verification. Another is assuming a marketing layout proves a use will be approved. A third is focusing only on density or room count while ignoring circulation, support functions, or likely code implications.

Other frequent issues include:

• Using non-scaled diagrams for real budgeting or scheduling decisions
• Confusing a conceptual plan with a permit-ready drawing set
• Overlooking existing columns, shafts, or irregular wall conditions
• Ignoring how current building systems may limit layout options
• Failing to verify local jurisdiction requirements early enough

These are not small problems. In commercial projects, a planning error can affect lease decisions, TI pricing, permit timelines, and move-in expectations. Getting the existing conditions right is often the simplest way to reduce downstream uncertainty.

Frequently asked questions

Is a space plan the same as a floor plan?

Not exactly. A floor plan is a broad term for a plan-view drawing of a space. A space plan is usually a proposed arrangement within that floor area for a specific commercial use. Some floor plans show existing conditions; some show proposed layouts. The term space plan usually emphasizes planning and use rather than just documentation.

Do you need as-built drawings before creating a commercial space plan?

You do not always need full as-builts for the earliest brainstorming stage, but you usually need accurate measured existing conditions before making dependable planning, budgeting, or permit decisions. In many California TI projects, as-builts are the most practical way to establish a trustworthy base drawing.

Can a space plan be used for permit approval?

Usually not by itself. A space plan may inform the design direction, but permit approval generally requires a fuller drawing set prepared to the standards of the local jurisdiction and applicable code review process. Confirm exact submittal requirements with the city or county handling your project.

What is the difference between a space plan and a test fit?

A test fit is commonly an early feasibility check that asks whether a program can fit into a candidate space. A space plan is often a more developed layout for a chosen space, with clearer room arrangement and operational logic. In some teams, the terms overlap, but the test fit is generally earlier and more schematic.

Who typically uses a space plan in commercial projects?

Brokers, landlords, tenants, architects, interior designers, contractors, and space planners all use them. The plan helps each party evaluate fit, function, scope, and likely improvement needs before committing to design development, pricing, or lease decisions.

Bottom line

A space plan is a scaled commercial layout that shows how an existing suite or building area could be organized for real use. It is one of the most useful CRE terms to understand because it sits at the intersection of leasing, design, budgeting, and commercial building code review. But its value depends on the accuracy of the underlying information. If you are planning a tenant improvement, comparing suites, or preparing a commercial build-out in California, FastAsBuilt can provide field-measured as-built drawings and measured floor plans that give your team a dependable starting point.
