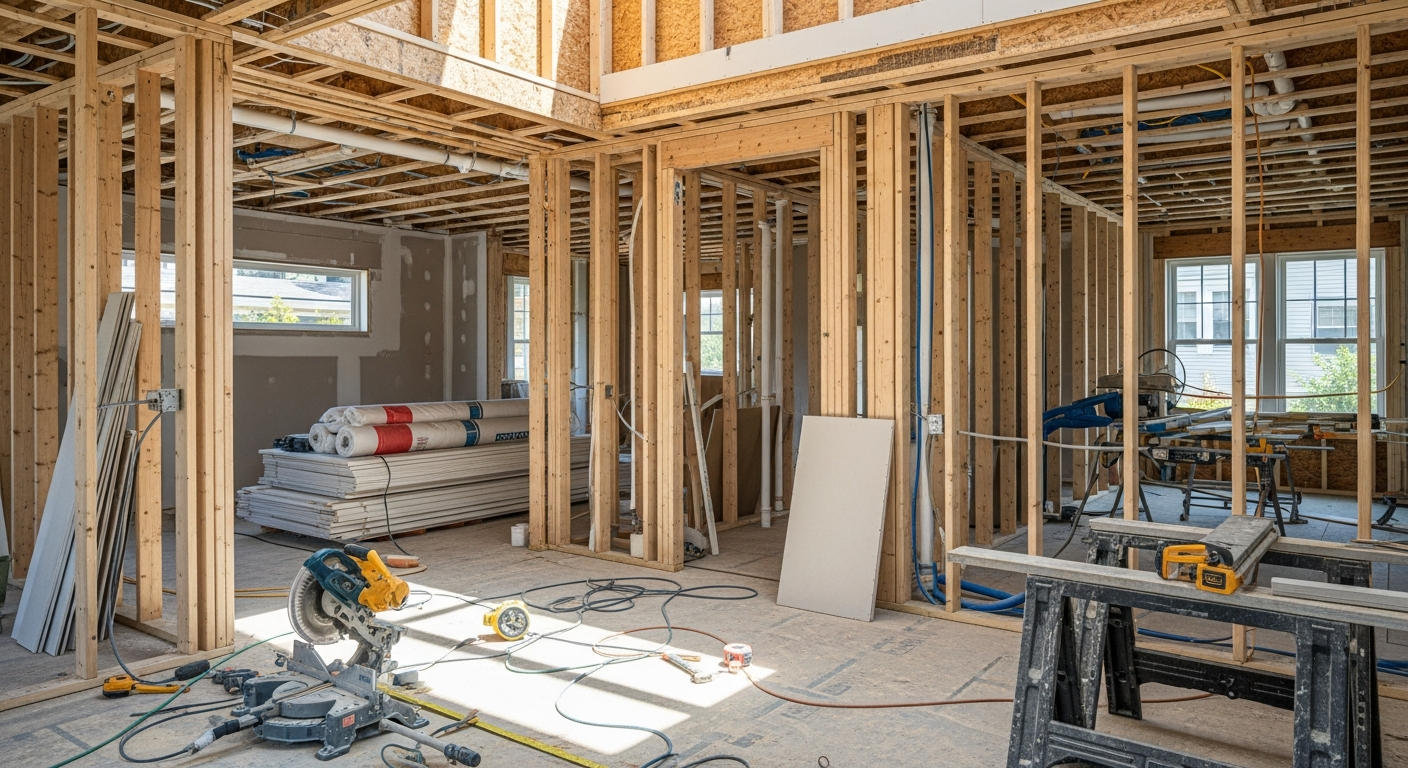

Do You Need As-Built Drawings for an Attic Conversion?

If you are planning an attic conversion, one of the first questions is whether you need as-built drawings before design and permitting begin. In many California projects, the practical answer is yes. Accurate existing-condition plans help your architect, engineer, designer, and local building department understand what is already there before anyone tries to turn that space into legal habitable area.

That matters because attic work is rarely just cosmetic. When you want attic conversion permit plans, the project usually touches structure, stair geometry, ceiling height, insulation, ventilation, windows, and life-safety rules. If your goal is to convert attic to bedroom California code requirements are especially important, and those requirements are much easier to evaluate when everyone is working from measured drawings instead of guesses, old listing sketches, or incomplete permit records.

Why attic conversions need accurate existing-condition plans

An attic conversion sounds simple until the design team starts asking basic questions: How much headroom actually exists? Where do the rafters, collar ties, and load-bearing walls sit? Is the current stair legal? How thick is the floor framing? Are there ducts, plumbing vents, or electrical runs in the way? Those questions cannot be answered reliably from photos alone.

As-built drawings document the house as it exists today. For an attic project, that usually means measured floor plans of the level below and the attic level, plus roof-related geometry that affects usable space. The point is not paperwork for its own sake. The point is to reduce redesign, improve permit submittals, and help your team identify problems before construction starts.

• They show existing dimensions, wall locations, and openings.
• They help verify whether a compliant stair can fit.
• They give structural and MEP consultants a dependable base file.
• They make it easier to compare what is legal, what is nonconforming, and what may need correction.
• They support more accurate contractor pricing.

If you are still at the early planning stage, it helps to understand what as-built drawings are and why they are often the starting point for permit work.

Do you legally need as-built drawings for attic conversion permit plans?

California building departments generally review the proposed work, not just the new finishes. That means they often need enough information about the existing house to determine whether the conversion can comply with local and state code requirements. While a city may not always use the exact phrase “as-built drawings required,” it may still expect existing floor plans, sections, elevations, or details that function as as-built documentation.

In practice, you are likely to need measured existing-condition plans when:

• You are creating a new habitable room or bedroom.
• You are adding or modifying stairs.
• You are changing structural framing.
• You are adding dormers, skylights, or roof alterations.
• You are changing windows for emergency egress.
• You need energy compliance documentation under Title 24.
• The house has old, inconsistent, or missing permit records.

Some very limited attic work may not require full permit-ready drawings, but a true habitable conversion usually does. Because each California jurisdiction has its own submittal standards, FastAsBuilt recommends confirming the exact plan set requirements with your city or county building department before design advances too far.

What attic conversion permit plans usually need to show

For most projects, attic conversion permit plans include both existing and proposed information. The existing portion is where as-built drawings come in. Your designer can only prepare a credible proposed set if the baseline is accurate.

Common plan elements include:

• Existing floor plans for the house and attic
• Proposed floor plans with room labels and dimensions
• Building sections showing floor-to-ceiling relationships
• Roof or attic framing information
• Elevations if exterior changes are involved
• Window and door locations
• Stair layout and dimensions
• Notes for insulation, ventilation, and life safety
• Structural sheets if framing changes are required
• Title 24 energy documents where applicable

Attic projects often need sections more than owners expect, because section views reveal the real headroom and roof slope conditions that a simple floor plan cannot. If the attic will become a bedroom, office, or other habitable area, those sections can become central to plan review.

This is also why attic conversions overlap with other residential project types. If your project includes a new sleeping room, you may also find it useful to read about adding a bedroom from a permitting standpoint.

Key California code issues when you convert attic to bedroom

If you want to convert attic to bedroom California rules are not just about fitting a bed under the roof. The city will usually look at whether the space can qualify as habitable area, whether it has safe access, and whether emergency escape and rescue requirements are met. Exact interpretations can vary by jurisdiction, so your designer should confirm local amendments and review comments.

Ceiling height and usable floor area

Sloped ceilings are one of the biggest hurdles in attic design. A room may feel large, but much of the perimeter may be too low to count as usable habitable area. Measured sections and roof geometry help your team determine whether the attic is viable before you spend money on engineering.

Stairs and access

Pull-down ladders and narrow ship ladders are rarely acceptable for a legal bedroom conversion. A compliant stair requires enough run, rise, width, and headroom. That often triggers redesign on the floor below, which is another reason existing as-built drawings matter.

Egress windows or exterior escape openings

A new bedroom usually needs a compliant emergency escape and rescue opening. In attic conversions, existing windows are often too small or poorly placed. If roof windows, dormers, or enlarged openings are needed, exterior changes may expand the permit scope.

Structural capacity

Many attics were built for storage, not regular occupancy. Floor joists may need strengthening, roof framing may need alteration, and new loads from finishes or fixtures may require engineering review.

Insulation, ventilation, and energy compliance

Because attics sit directly under the roof, heat gain and insulation strategy matter. Title 24 can apply to alterations involving the building envelope, fenestration, and conditioned space. Requirements differ by climate zone and scope, so your energy consultant or designer should confirm what applies locally.

For homeowners considering broader roof or ceiling changes as part of the project, our article on plans to vault or raise a ceiling can help frame the permitting issues.

How as-built drawings reduce surprises before design and permit review

Attic conversions are famous for hidden constraints. You may discover that the HVAC equipment sits in the only practical stair location, or that an existing chimney blocks the clear path through the room, or that a low ridge height makes a legal conversion unrealistic without major roof work. When those facts emerge late, the project slows down and costs rise.

Measured as-built drawings help reduce that risk in several ways:

• They improve feasibility screening. Your designer can quickly tell whether the attic has a realistic path to compliance.
• They shorten back-and-forth. Consultants do not need to rebuild the house from rough hand sketches.
• They help identify conflicts early. Stairs, framing, windows, and mechanical systems can be studied before permit submission.
• They support better bids. Contractors can price from actual dimensions rather than assumptions.
• They create a reusable base file. If the attic conversion grows into a larger remodel, the existing CAD work still has value.

This is the same logic that applies to many renovation types, especially when layout and structural questions interact. For a wider overview, see whether you need as-built drawings before a renovation.

When a simple floor plan is not enough

Some homeowners assume a basic sketch of the attic footprint will be enough to start design. For storage shelving or minor maintenance, maybe. For a permitted conversion, usually not. Because attic livability depends so heavily on vertical geometry, the most useful documentation often goes beyond a flat 2D outline.

That can include:

• Cross sections showing ridge height and slope
• Interior elevations of knee walls and dormers
• Framing observations relevant to engineering
• Window sill and header measurements
• Stair opening dimensions at the level below
• Roof penetration and mechanical equipment locations

In some cases, a 3D model can help the design team and owner understand usable volume more clearly than 2D alone. FastAsBuilt offers 3D As-Built Plans starting at $1,500, then $1.00 per square foot. That package includes a 3D model plus 2D floor plans, elevations, and sections, with 2 revisions and typical delivery in 3-5 business days. For attic projects with tricky slopes and headroom, that added clarity can be worthwhile.

Turnaround times are estimates and may vary based on project complexity and scheduling.

What FastAsBuilt provides for California attic projects

FastAsBuilt provides field-measured as-built drawings and measured floor plans across California. Local crews serve Southern California, including Los Angeles, Orange County, and the Inland Empire, as well as the Bay Area and San Diego. The process is straightforward: we perform on-site laser measurement, then senior drafters produce permit-ready CAD files delivered in PDF and DWG formats.

For many residential attic conversions, our 2D As-Built Plans are enough to get the design process moving. That service starts at $900 for up to 1,500 square feet, then $0.50 per square foot, includes 1 revision, and typically delivers in 48-72 hours. If the attic geometry is complex or your team wants a fuller spatial model, the 3D option may be a better fit.

Turnaround times are estimates and may vary based on project complexity and scheduling.

Custom projects are quoted individually, especially when the conversion is part of a larger scope such as a whole-house remodel, ADU strategy, SB 9 lot development, or tenant improvement. If your attic work is bundled into a bigger redesign, you may also want to review how as-builts support a whole-house remodel.

When you are ready, you can review options and start at our packages page.

Common attic conversion scenarios where measured plans are especially important

Not every attic starts from the same condition. Some houses have unfinished but roomy attics. Others have chopped-up framing, old mechanical systems, and barely enough height to crawl. The more constrained the space, the more valuable good documentation becomes.

Older California homes

In older housing stock, permit history may be incomplete and framing may not match modern expectations. Existing measurements help your team distinguish original conditions from later alterations. If the property is historically significant or under a preservation program, additional review may apply. For example, a Mills Act property can involve special local considerations, so owners should coordinate closely with the jurisdiction and preservation staff; our overview of as-built drawings for a Mills Act historic property explains the planning value.

Attics with low ridge height

When the ridge is low, small dimension errors can change the entire feasibility picture. A rough tape-measure estimate may make the project look possible when it is not, or vice versa.

Conversions requiring dormers or roof changes

Once you alter the roofline, the project becomes more visible and often more complex in plan review. Existing elevations and sections become more important.

Projects adding a legal bedroom

Bedrooms trigger closer scrutiny of egress, smoke and carbon monoxide alarms, and access. Existing plans help the design team understand how the new room connects to the rest of the house.

Homes with previous unpermitted work

If the attic was partly finished years ago without permits, accurate as-builts help establish current conditions for the professionals who must decide what can remain, what must be altered, and what the city may require to legalize the space.

How to prepare for an attic as-built survey

You do not need to do much before a field measure, but a little preparation helps the process go faster and improves access to hard-to-reach areas.

• Clear stored boxes away from the attic perimeter if possible.
• Provide access to the attic, the floor below, and any exterior areas tied to windows or roof changes.
• Gather any prior plans, permit cards, or inspection records you have.
• Note known issues such as leaks, sagging framing, or prior remodel work.
• Tell the drafting team whether your designer wants only 2D plans or would benefit from sections and 3D documentation.

Even if you do not have old plans, a measured survey can create the base your project needs. That is often better than trying to patch together conflicting information from appraisal sketches, listing materials, or past contractor drawings.

Frequently asked questions

Can you convert an attic to a bedroom in California without as-built drawings?

Sometimes a designer can begin concept discussions without them, but a permitted bedroom conversion usually needs accurate existing-condition information. Because attic projects depend on headroom, stairs, structure, and egress, measured as-built drawings are often the most efficient starting point.

Do all cities require the same attic conversion permit plans?

No. California jurisdictions share many core code concepts, but each city or county can have different submittal checklists, review preferences, and local amendments. Always confirm requirements with the local building department before finalizing your plan set.

What if the attic was previously finished without permits?

That is a common situation. As-built drawings can document the current layout so your designer, engineer, and city can evaluate what exists. From there, the jurisdiction may require corrections, additional documentation, or selective demolition to verify concealed conditions.

Are 2D plans enough, or should you order 3D as-builts?

Many attic conversions can start with 2D measured plans, especially if the geometry is straightforward. If the roof slopes are complex, headroom is tight, or your team wants clearer sections and spatial understanding, 3D as-builts may provide better value.

How much do as-built drawings cost for an attic conversion?

FastAsBuilt 2D As-Built Plans start at $900 for up to 1,500 square feet, then $0.50 per square foot, with 1 revision and typical 48-72 hour delivery. 3D As-Built Plans start at $1,500, then $1.00 per square foot, include a 3D model plus 2D floor plans, elevations and sections, 2 revisions, and typical delivery in 3-5 business days. For more detail, see our overview of as-built drawing costs in California.

Turnaround times are estimates and may vary based on project complexity and scheduling.

Bottom line

If you need attic conversion permit plans, accurate as-built drawings are often the smartest first step. They help your team verify whether the attic can become legal habitable space, support cleaner permit submissions, and reduce expensive surprises around stairs, ceiling height, structure, egress, and Title 24 compliance. For homeowners planning to convert attic to bedroom California requirements can be strict, but good measured plans make the process much more manageable. FastAsBuilt provides field-measured, permit-ready existing-condition drawings across California so your project can start from facts instead of assumptions.
